NON-DIGITAL SCALE MODEL

The Process

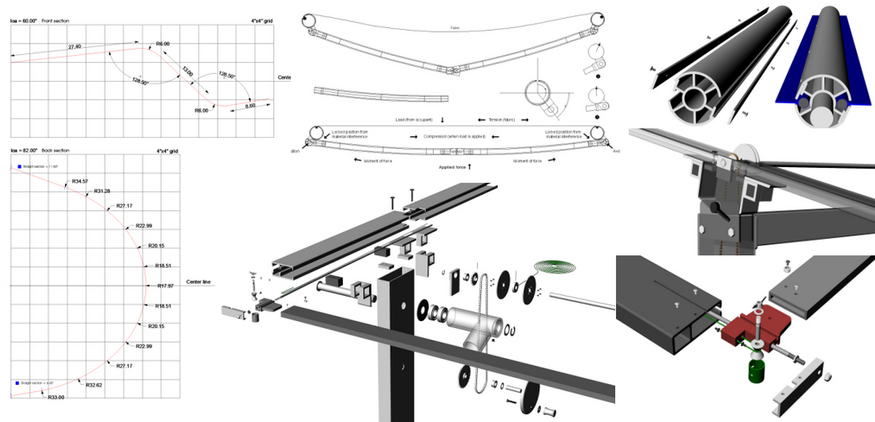

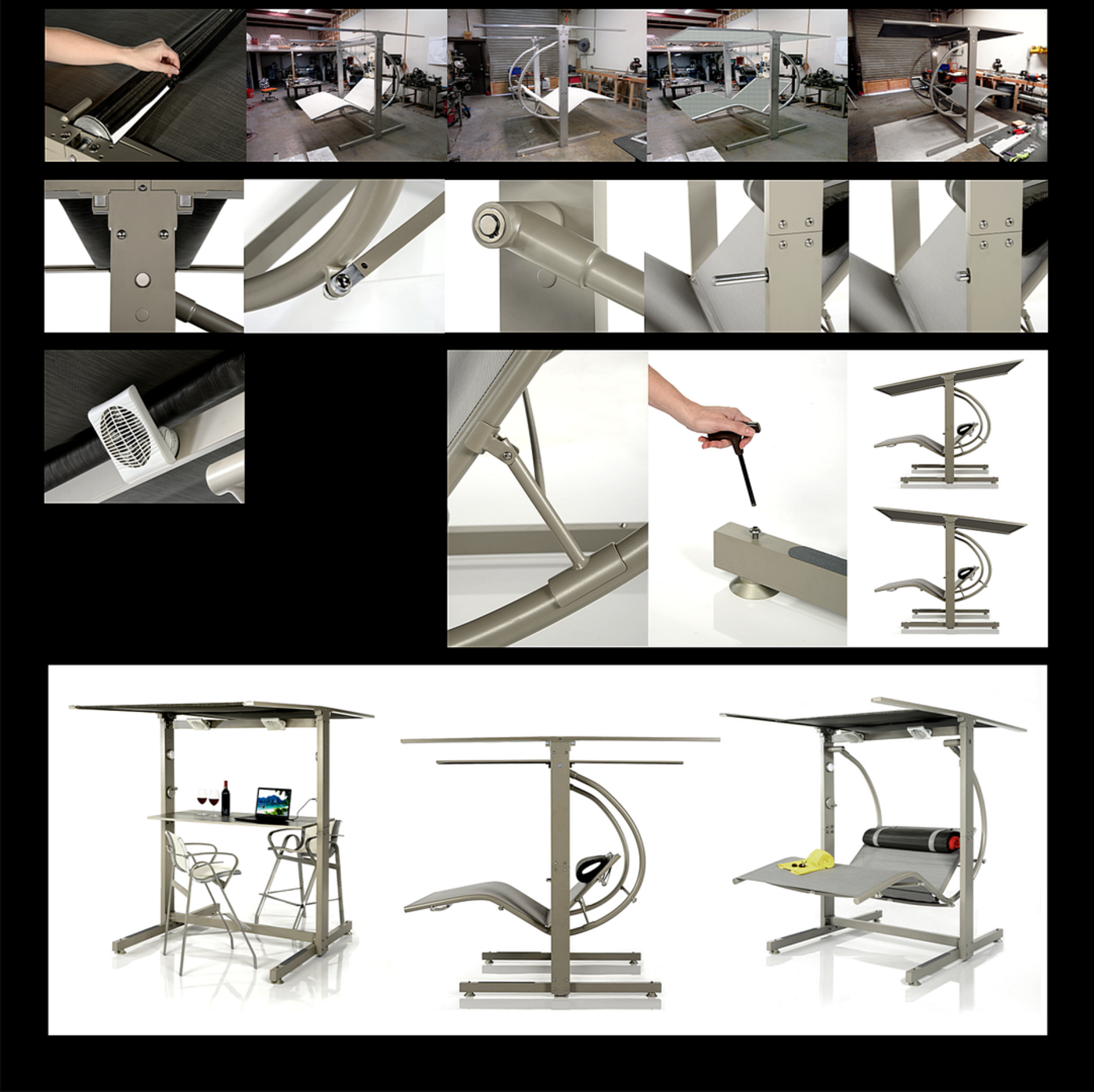

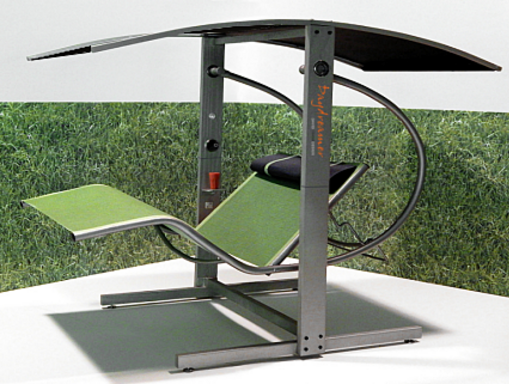

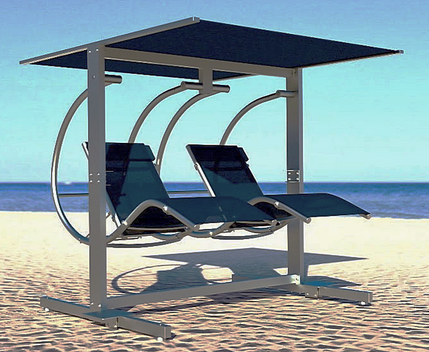

The images below outline a highly edited photographic chronology of the design, development and construction of the ZeroGrav Newtonian Glider and convertible seating environment through full scale working prototype. Incorporated into the main structure are power storage batteries, directional fans, LED lighting, mobile ports and audio speakers. The canopy is an aluminum structure with an adjustable 35 degree front/back tilt. It features a manually actuated center spooled & counter-wound retractable fabric surface with solar collecting PV film integrated onto the fabric.

Note:

Substantially all prototype component parts were hand made, machined and assembled by myself and master craftsman

Mike Blizzard.
